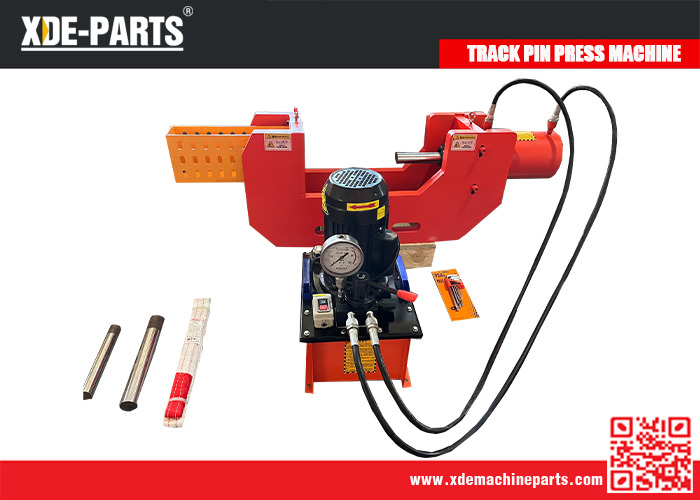

100T/200T Portable hydraulic track link pin press machine: this press is for removal and insertion of master pin and removal of sprocket for all type
of Excavators&Dozers, and for earth moving /Mining equipments.
The track is also known as caterpillar, continuous track or tank tread for the removal or installation of the pins from the undercarriage
tracks of excavators, bulldozers, tanks, tractors and similar track propelled machinery.
Portable hydraulic track press pusher (manual hydraulic or electric pump) is available for smaller machine tracks and larger fixed electrical
machines are available for larger machinery tracks (suited for workshop).
Pin Pusher Technical Specifications
Pushing force: 100T (750 kN) or 150T (1500 kN) or 200T (2000 kN)
Working pressure: 700 bar
Diameter of pushing pin: multiple sizes available
Stroke: 140mm or bigger
Weight of the hydraulic pusher: 95 kg
Weight of the hand-operated pump: 15 kg
Mater Pin Pusher For Excavator&Dozer Track Chains Parameters:
| Pic |
Type |
Model |
Fit For Track Link Pitch |
Mould |
|
| |
|
|
(mm) |
Quantity |
|
 |
Manual type /250kgs |
X150-1 |
175,190 |
1 |
|
| |
|
X150-2 |
175,190,203 |
2 |
|
| |
|
X150-3 |
175,190,203,216 |
3 |
|
| |
|
X200 |
175,190,203,216,228 |
4 |
|
| |
|
X200-1 |
Only for 280 |
1 |
|
|
Manual & Electronic /300Kgs |
X150-1E |
175,190 |
1 |
|
| |
|
X150-2E |
175,190,203 |
2 |
|
| |
|
X150-3E |
175,190,203,216 |
3 |
|
| |
|
X200E |
175,190,203,216,228 |
4 |
|
| |
|
X200-1E |
Only 280 |
1 |
|
